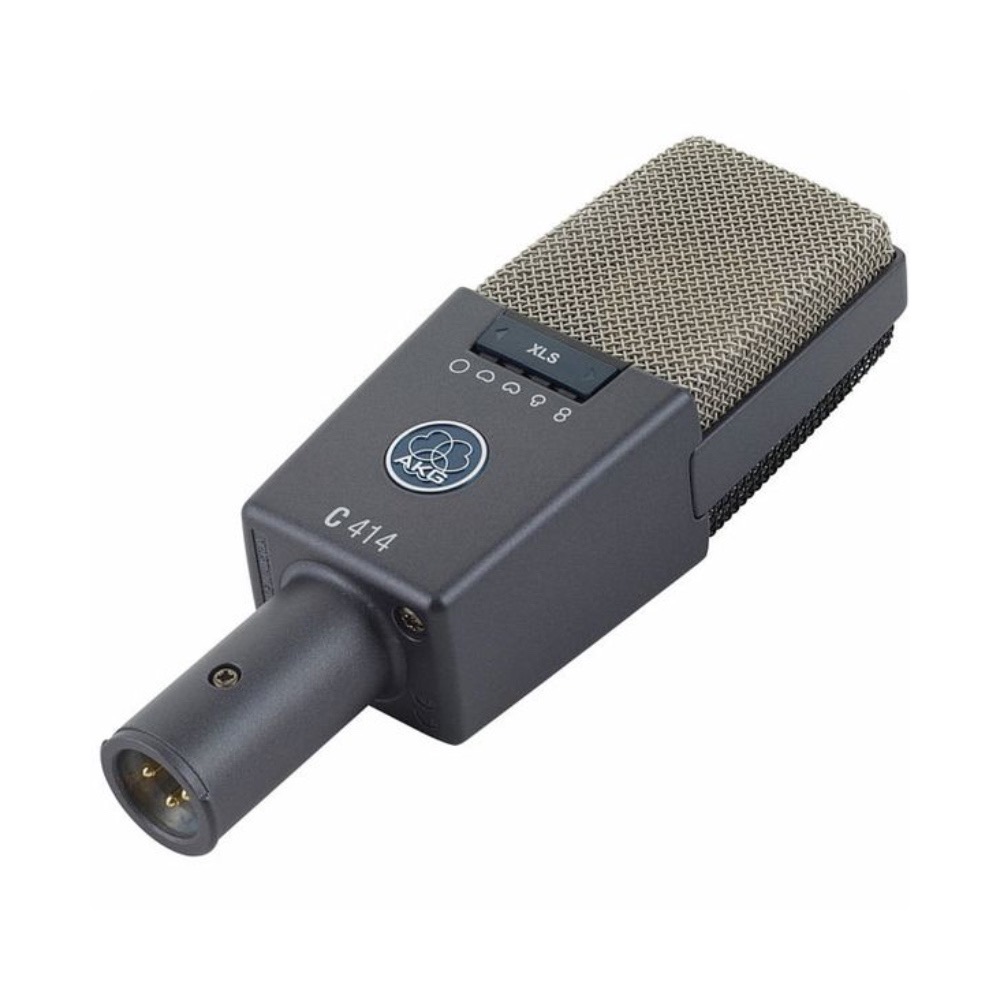

Akg C414 XLS Reference multipattern condenser microphone A LEGEND SINCE 1971 The C414 XLS multipattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. A peak hold LED displays even the shortest overload peaks. For live sound applications and permanent installations, all controls can easily be disabled for trouble-free use. The C414 XLS maintains the sonic character of the legendary C414 B-ULS, the most popular AKG C414 version since 1971. Engineered for highest linearity and neutral sound, it has been the most versatile large-diaphragm microphone for decades. General Specifications Polar Patterns Cardioid, Figure of eight, Hypercardioid, Omnidirectional, and Wide Cardioid Audio frequency bandwidth 20 – 20000 Hz Equivalent noise level 6 dB-A Sensitivity 23 mV/Pa Signal to Noise 88 dB-A Preattenuation Pad -6; -12; -18 dB Bass cut filter 160; 80; 40 Hz Electrical impedance 200 Ohms Recommended load impedance 2200 Ohms Dimensions Length 38 mm Width 50 mm Height 160 mm Net Weight 300 g Design Finish dark gray/silver Audio Output Type Balanced XLR Gender Male Contacts 3-pin Powering Interface Voltage 44 to 52 V Current 4.5 mA Application Pro Studio Yes Instrument Vocals Yes Piano / Strings Yes Horns / Woodwinds Yes
