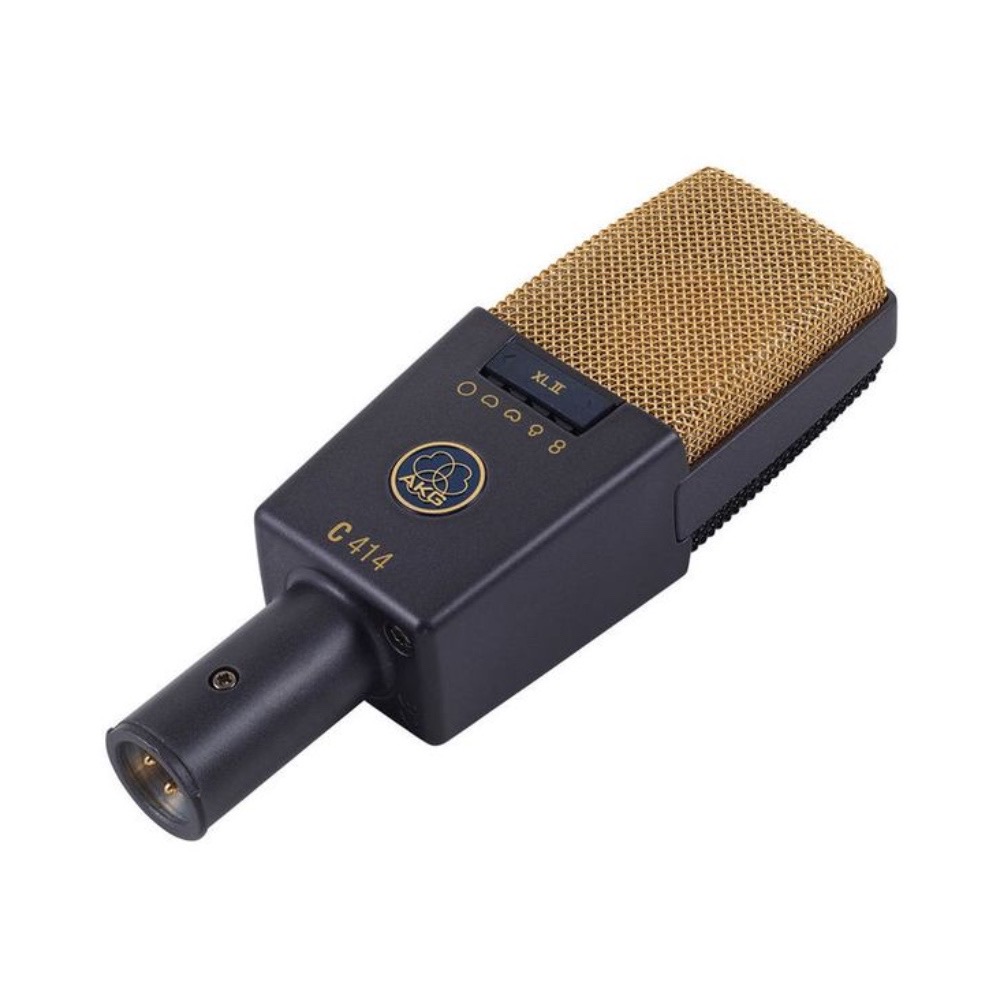

OVERVIEW The C414 XLII multi-pattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. A peak hold LED displays even the shortest overload peaks. For live sound applications and permanent installations, all controls can easily be disabled for trouble-free use. FEATURES Sonic character of the famous AKG C12 Delivers astounding sound quality for lead vocals and solo instruments Nine selectable polar patterns For the perfect setting for every application Three attenuation levels (-6/-12/-18dB) For close-up recording or high-output sources of up to 158dB SPL Three switchable different bass-cut filters To reduce wind noise, stage vibration or proximity effect Overload warning with audio peak hold LED To detect shortest audio peaks General Audio frequency bandwidth: 20 – 20000 Hz Equivalent noise level: 6 dB-A Sensitivity: 23 mV/Pa Signal to Noise: 88 dB-A Preattenuation Pad: -6; -12; -18 dB Bass cut filter: 160; 80; 40 Hz Electrical impedance: 200 Ohms Recommended load impedance: 2200 Ohms Polar Patterns: Omnidirectional, Wide Cardioid, Cardioid, Hypercardioid, and Figure of Eight Powering Interface Voltage: 44 to 52 V Current: 4.5 mA Design Finish: dark gray/gold Audio Output Type: Balanced XLR Gende: rMale Contacts: 3-pin Application Pro Studio: Yes Instrument Vocals: Yes Piano / Strings: Yes Horns / Woodwinds: Yes
