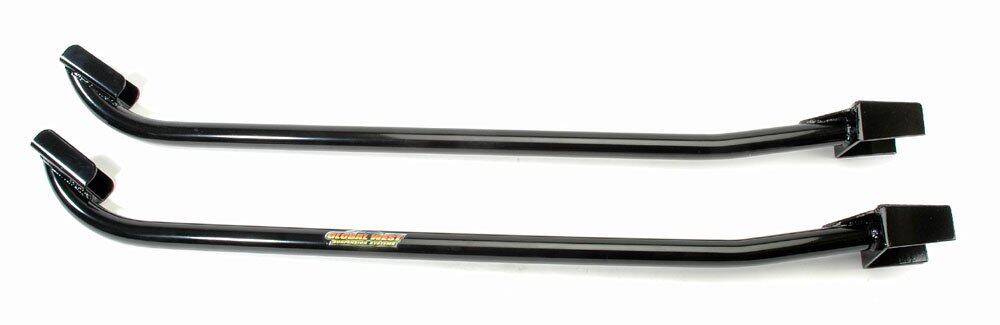

Description Global West Suspension sells tubular subframe connectors for the 1970, 1971, 1972, and 1973 Camaro. No cutting or modification of floor pans are required. The subframe connectors are full length. This means the subframe connector is going to the back of the factory subframe and extend to the rear structural support rail going over the differential. Subframes are powder coated black Subframes are made from 1 5/8 x 0.125 wall DOM tubing Additional hardware and plates are supplied. No exhaust modifications are required. Minimal ground clearance lost (in most cases the exhaust is lower) Two bushings are included with subframe connectors. Use part #809, #819 or #816 for remaining bushings. Product Information The subframe connector is welded to the uni-body portion of the chassis, not bolted and do not attach to the leaf spring front bracket bolts. Those bolts are 3/8 of an inch in diameter and are held in place with small nut clips and will not hold up. The subframe connector sandwiches between the factory frame and the body. It can be bolted or welded. Welding is always the best, but in this case it is not as practical. If the car is in a collision, the frame needs to be replaced by unbolting the subframe: bolting to the original frame works because the material of the factory frame is 3/16” thick, all the sides are being bolted. Interloc body mount bushings should be used if subframes are installed. High-Quality Tubular Subframe Connectors for 1970-73 GM F-Body Models Crafted with precision and built to last, our tubular subframe connectors for the 1970, 1971, 1972, and 1973 GM F-Body models, including the Camaro and Firebird, are a testament to Global West’s commitment to quality. We understand that enhancing your classic car’s performance is a journey, and our dedicated support team is always just a call or message away to assist you with any questions or concerns. To make your installation as smooth as possible, we provide comprehensive instruction sheets and engaging video tutorials that guide you through each step. Our connectors are designed to integrate seamlessly with your vehicle, ensuring a perfect fit without compromising structural integrity. Explore more options for your restoration project by checking out our Chevrolet Car Parts, dive into our 1970-81 Camaro Parts, or find the right Camaro Subframe Bushings to complete your setup.
