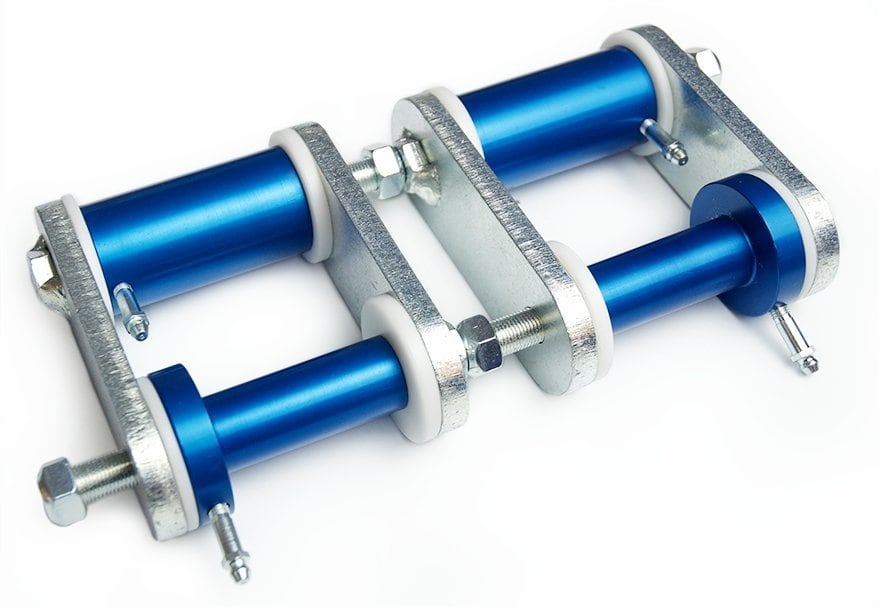

1967-1981 Camaro 1967-1981 Firebird 1968-1974 Nova Del-A-Lum Bushing Shackle Kit used with Caltrac Bars and Caltrac Leaf Springs Part Number: 111SH

Description Del-A-Lum Shackle Kits: A bushing that works like a bearing!Del-A-Lum bushings are perfect for street, drag and autocross applications. Installation requires the bushing housings to be pressed into the frame and the leaf spring eyelets. Inserts and thrust washers separate the housings and springs from metal to metal contract and provide total isolation. The inserts and thrust washers also provide a bearing surface for the bushing. This design makes the bushings operate similar to a bearing. Grease fittings are installed and the housing is grooved internally for grease penetration. Del-A-Lum bushings also provide lateral control of the leaf springs. TECH TIP- When a vehicle leaves the line hard in a drag race application, the forward portion of the leaf will try to deflect inboard. This action will make the car walk sidewalks. Del-A-Lum bushings will stop the leaf from walking inboard. TECH TIP- For drag racing applications, a lot of people place a solid type bushing in the front eyelet and leave the rear bushings in rubber or poly. Do not do this!!! Rubber and polyurethane will allow the rear portion of the leaf to walk laterally. If the front bushing is solid mounted, the length of the leaf becomes a long torque arm reacting on the forward mounting point. It is trying to rip the mount out of the car. The solution is to use a Del-A-Lum shackle kit and remove the problem. TECH TIP- Autocross applications: Leaf spring bushings during hard cornering allow the rear end to move laterally. This creates a rear end tracking problem that is evident with tire rubbing and sluggish suspension response. This can also promote oversteer. NOTE: Del-A-Lum shackle kits are shipped complete with front and rear eyelet bushings, shackles, and related hardware (except where noted by an *).
