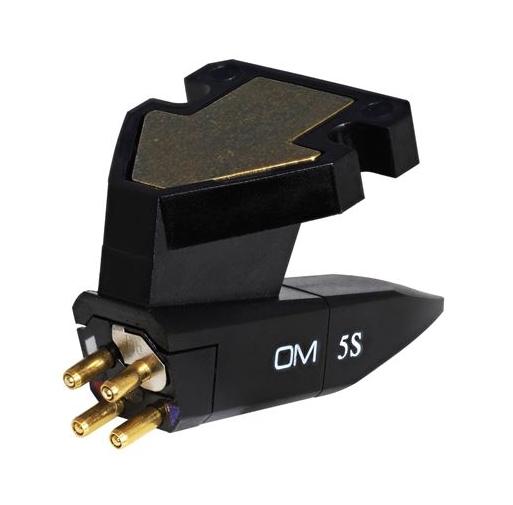

Ortofon OM 5S

Description Technical Specifications: Output voltage at 1000 Hz, 5cm/sec. – 4.5 mV Channel balance at 1 kHz – 2 dB Channel separation at 1 kHz – 20 dB Channel separation at 15 kHz – 12 dB Frequency range at – 3dB – 20-20.000 Hz Frequency response – 20-22.000 Hz Tracking ability at 315Hz at recommended tracking force *) – 60 µm Compliance, dynamic, lateral – 20 µm/mN Stylus type – Spherical Stylus tip radius – R 18 µm Tracking force range – 1.5-2.0 g (15-20 mN) Tracking force, recommended – 1.75 g (17.5 mN) Tracking angle – 20° Internal impedance, DC resistance – 750 Ohm Internal inductance – 450 mH Recommended load resistance – 47 kOhm Recommended load capacitance – 200-500 pF Cartridge colour, body/stylus – Black/Black Cartridge weight incl. extra weight – 5 g Cartridge weight excl. extra weight – 2.5 g Ortofon OM 5S
