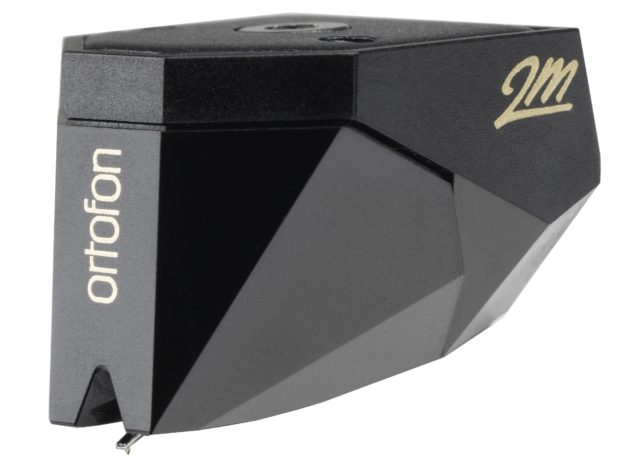

Ortofon 2M Black

Description Technical Specifications: Output voltage at 1000 Hz, 5cm/sec. – 5 mV Channel balance at 1 kHz – 1 dB Channel separation at 1 kHz – 26 dB Channel separation at 15 kHz – 15 dB Frequency range at – 3dB – 20-31.000 Hz Frequency response – 20-20.000 2 / – 0 dB Tracking ability at 315Hz at recommended tracking force – 80 µm Compliance, dynamic, lateral – 22 µm/mN Stylus type – Nude Shibata Stylus tip radius – r/R 6/50 µm Tracking force range – 1.4-1.7 g (14-17 mN) Tracking force, recommended – 1.5 g (15 mN) Tracking angle – 20° Internal impedance, DC resistance – 1.2 kOhm Internal inductance – 630 mH Recommended load resistance – 47 kOhm Recommended load capacitance – 150-300 pF Cartridge colour, body/stylus – Black/Black Cartridge weight – 7.2 g 2M PnP MkII cartridge with integrated headshell weight – 20 g 2M PnP MkII cartridge with integrated headshell length – 52 mm Ortofon 2M Black
