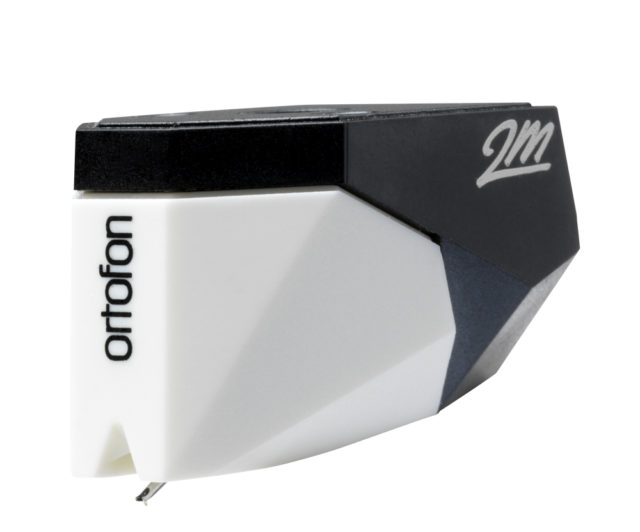

Ortofon 2M Mono

Description Technical Specifications: Output voltage at 1000 Hz, 5cm/sec. – 4 mV Frequency range at – 3dB – 20-22.000 Hz Frequency response – 20-20.000 Hz 3 / – 1 dB Tracking ability at 315Hz at recommended tracking force – 70 µm Compliance, dynamic, lateral – 18 µm/mN Stylus type – Nude Spherical Stylus tip radius – R18 µm Tracking force range – 1.6-2.0 g (16-20 mN) Tracking force, recommended – 1.8 g (18 mN) Tracking angle – 20° Internal impedance, DC resistance – 700 Ohm Internal inductance – 350 mH Recommended load resistance – 47 kOhm Recommended load capacitance – 150-300 pF Cartridge colour, body/stylus – Black/White Cartridge weight without screws – 7.2 g 2M PnP MkII cartridge with integrated headshell weight – 20 g 2M PnP MkII cartridge with integrated headshell length – 52 mm Ortofon 2M Mono
