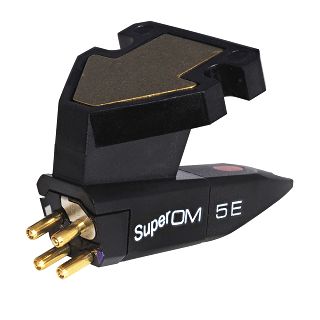

Ortofon Super OM 5

Description Technical Specifications: Output voltage at 1000 Hz, 5cm/sec. – 4 mV Channel balance at 1 kHz – 1.5 dB Channel separation at 1 kHz – 22 dB Channel separation at 15 kHz – 15 dB Frequency range at – 3dB – 20-25.000 Hz Frequency response – 20-20.000 Hz ± 2 dB Tracking ability at 315Hz at recommended tracking force – 65 µm Compliance, dynamic, lateral – 20 µm/mN Stylus type – Elliptical Stylus tip radius – r/R 8/18 µm Tracking force range – 1.5-2.0 g (15-20 mN) Tracking force, recommended – 1.75 g (17.5 mN) Tracking angle – 20° Internal impedance, DC resistance – 1 kOhm Internal inductance – 580 mH Recommended load resistance – 47 kOhm Recommended load capacitance – 200-500 pF Cartridge colour, body/stylus – Black/Black Cartridge weight incl. extra weight – 5 g Cartridge weight excl. extra weight – 2.5 g Ortofon Super OM 5
