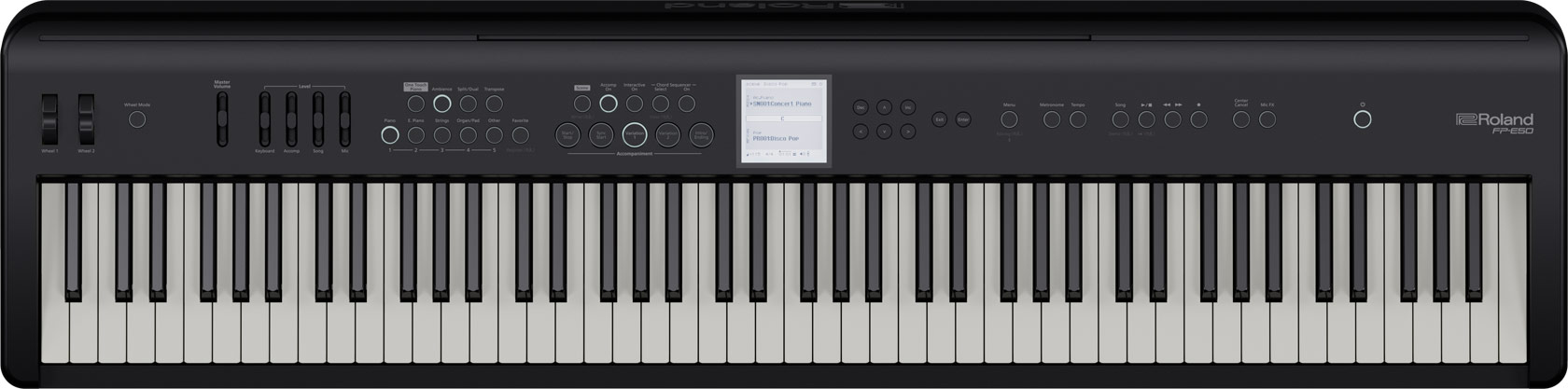

Roland FP-E50 Specifications Sound Generator •Sound Engine: SuperNATURAL Piano, ZEN-Core •Max. Polyphony: 256 •Tones: •Piano: 38 tones •Electric Piano: 34 tones •Strings: 36 tones •Organ/Pad: 184 tones •Synth/Other: 726 tones (including 74 drum sets) Ambience •Type: Studio, Lounge, Concert Hall, Cathedral •Depth: 10 types Keyboard •Keys: 88 keys (PHA-4 Standard Keyboard with Escapement and Ivory Feel) Speaker System •Speakers: 12 cm (4-3/4 inches) x 2 (with speaker box) •Rated Power Output: 11 W x 2 Headphones •3D Ambience: Available Bluetooth •Version: Bluetooth Ver 4.2 •Profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy) •Codec: SBC (Supports SCMS-T content protection) Automatic Accompaniment •Style Presets: 177 styles (requires update to Ver. 1.10) •Controls: Start/Stop, Intro/Ending, Sync Start, Variation1, Variation2, Interactive function Chord Sequencer •Preset Chord Pattern: 140 types •User Chord Pattern: 256 (import/export possible) Scene •Preset Scene: 107 styles •User Scene: 256 (import/export possible) Data Playback •Playable Software: Audio File (WAV: 44.1 kHz, 16-bit linear format, MP3: 44.1 kHz, 64–320 kbps) Recorder •Recordable Software: Audio File (WAV: 44.1 kHz, 16-bit linear format) •Recording Time: 390 minutes (maximum recording time per song: 200 minutes) •Recording System: New Song Recording, Overlapping Recording Internal Songs •Number of Songs: 3 Tuning & Voicing •Touch Sensitivity: Key Touch (100 types, fixed touch) •Hammer Response: 10 types •Master Tuning: 415.3–466.2 Hz (adjustable in increments of 0.1 Hz) •Temperament: 10 types (Equal, Just Major, Just Minor, Pythagorean, Kirnberger I, Kirnberger II, Kirnberger III, Meantone, Werckmeister, Arabic), selectable temperament key Effects •Ambience: Available •Equalizer: 3-band digital equalizer Only for Organ Tones: •Rotary Speaker Effect: Available Mic Effects: •Auto Harmony: 9 types •Voice Transformer: Octave (-1– 1), Formant (-12– 12 semitones) •Vocal Designer: 26 types •Compressor: Soft, Normal, Hard •Noise Suppressor: Threshold (-96–0 dB) Piano Designer •Adjustable Parameters: •Lid •String Resonance •Damper Resonance •Key Off Resonance •Cabinet Resonance •Single Note Tuning •Single Note Volume •Single Note Character Convenient Functions •Metronome: Adjustable Tempo/Beat/Downbeat/Pattern/Volume/Tone •Transpose: Keyboard/Style (in semitones) •Favorite Tone: 50 tones •Dual/Split: Split point adjustable •Twin Piano: Available •Demo Song: Available •Center Cancel: Available •Auto Off: Available •One-Touch Piano: Available Other Features •Display: Graphic LCD (160 x 160 dots) •Control Sliders: •Master Volume •Accompaniment Volume •Song Volume •Mic Volume •Mic Gain Knob: Available •Assignable Wheels: 2 Connectors •DC In Jack •Pedal Jacks: •Pedal 1 (Damper): Capable of continuous detection with optional pedal •Pedal 2 (Damper, Sostenuto, Soft): Capable when dedicated pedal board is connected •Input Jack: Stereo miniature phone type •Output Jacks (L/Mono, R): 1/4-inch phone type •Mic Input Jack: 1/4-inch phone type •USB Computer Port: USB B type (supports USB MIDI/AUDIO) •USB Memory Port: USB A type •Phones Jack x 2: Stereo miniature phone type, Stereo 1/4-inch phone type Power Supply •AC Adapter: Included •Power Consumption: •11 W (when using the included AC adapter) •Approx. 6 W (when playing piano at medium volume) •Approx. 5 W (when sound is not played after power-on) Accessories •Included: •Quick Start guide •Leaflet (“Using the Unit Safely”) •AC Adapter •Power Cord •Music Rest •Damper Pedal (DP-2) •Options (Sold Separately): •Dedicated Stand: KSFE50 •Dedicated Pedal Board: KPD-70 •Keyboard Stands: KS-10Z, KS-12, KS-20X •Damper Pedal: DP series •Expression Pedal: EV-5 •Headphones Size & Weight •Width: 1,300 mm (51-3/16 inches) •Depth: •Detached Music Rest: 322 mm (12-11/16 inches) •FP-E50 with KSFE50 and Music Rest: 357 mm (14-1/16 inches) •Height: •Detached Music Rest: 174 mm (6-7/8 inches) •FP-E50 with KSFE50 and Music Rest: 953 mm (37-9/16 inches) •Weight: •FP-E50 with Music Rest: 17.1 kg (37 lbs 12 oz) •FP-E50 with KSFE50, KPD-70, and Music Rest: 27.3 kg (60 lbs 3 oz)
